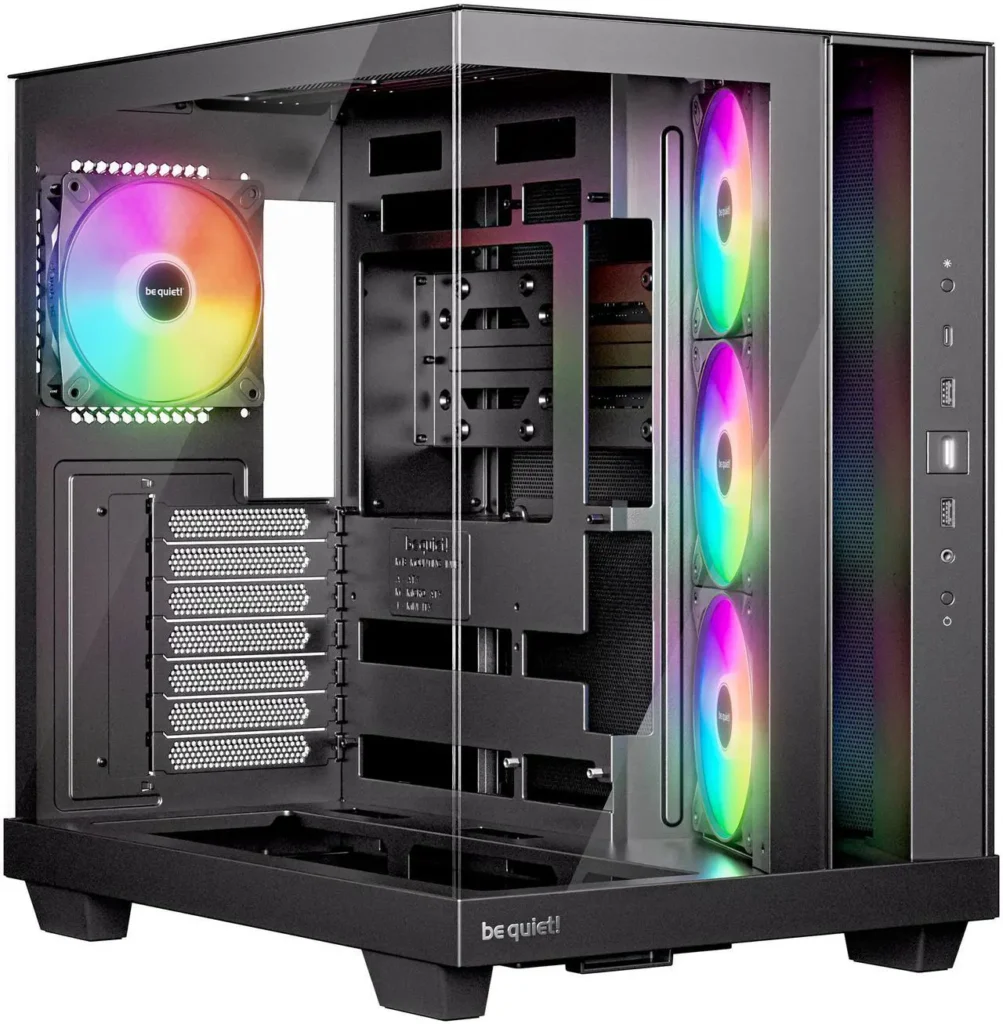

be quiet! builds its entire brand identity around silence. Quiet fans, quiet PSUs, quiet coolers — the name isn’t marketing shorthand, it’s a product philosophy that shows up in fan blade design, motor specifications, and acoustic testing across every product they make. The Light Base 500 LX is their mid-tower case interpretation of that philosophy, wrapped in panoramic tempered glass and equipped with an angular fan design that does something no other case at this price point attempts.
At $139.90 on Newegg, it sits between budget and premium. The build quality and feature set justify where it lands. Best PC Cases for Airflow 2026
The Design Decision That Makes This Case Different
Every case in this price range puts fans in front of the case pointing inward. The Light Base 500 LX puts three 120mm fans on the side panel, angled toward the GPU specifically. The fans are mounted on a removable bracket on the right side of the case interior — not the front panel, not the bottom, but the side — with reverse-blade Light Wings LX fans that pull air in from the right and direct it across the GPU heatsink.
This is the case’s defining feature. The angular custom reverse fans deliver strong cooling performance to the main chamber. The three side-mounted fans create a direct airflow path from outside the case to the GPU’s intake, bypassing the longer journey that front-intake air makes as it travels across the case floor before reaching the card.
The practical result in testing: GPU temperatures under sustained gaming load are lower than competing panoramic-glass cases that use conventional front-intake designs. It’s not a 10°C improvement — it’s 3-5°C in most configurations — but for a glass-front case where thermal performance is typically the trade-off you accept for aesthetics, achieving competitive temperatures through an unconventional fan layout is genuinely notable.
The fan bracket is removable for installation, which is the right engineering call. Moving the bracket out of the case while installing the motherboard and GPU makes the process significantly less cramped than working around fixed side-mounted fans.
Build Quality and Materials
be quiet! once again brings a high level of finesse and build quality to its latest case. The tempered glass panels along the side and front showcase your components and internal RGB lighting to great effect.
The front and side panels are full tempered glass — genuine panoramic visibility with a small corner joint that’s nearly seamless. The exterior uses SGCC steel with a textured finish that feels premium and doesn’t collect fingerprints as aggressively as the smooth painted finishes on cheaper cases. Custom Water Cooling Guide
The weight is notable — approximately 9-11kg assembled. This is a substantial chassis. The weight comes from the glass panels and the steel construction, not from padding. It sits solidly on a desk without any tendency to slide or tip.
The front panel is removable, which is a useful maintenance feature — pull it off and the side-mounted fans are accessible without disassembling anything else. One limitation flagged in multiple reviews: removing the front panel creates some flex in the top panel, which is a minor structural complaint on an otherwise solid chassis.
Cable pre-routing is a premium touch that be quiet! includes across their higher-tier cases. The case pre-routes the front panel and fans in a luxury-feeling sleeve that brings the cables to the back and allows them to be installed into the motherboard or where needed. For builders who’ve worked with cases where the front panel cables are a tangled mess, this detail is immediately noticeable. PC Case Design Explained
Component Clearances
This case supports high-end hardware, including up to 400mm long graphics cards, radiators up to 360mm, ATX motherboards including back connect, and up to 185mm tall CPU coolers.
The 400mm GPU clearance handles everything currently available including the largest triple-fan RTX 5090 and RX 9070 XT designs. The 185mm CPU cooler height clears virtually every air cooler — the Noctua NH-D15 G2 at 165mm, the Cooler Master V8 ACE 3DHP at 167mm, even the tallest third-party dual-tower designs. The 360mm radiator support at the top covers the standard AIO format for most builds.
Back-connect motherboard support is confirmed — ASUS BTF, MSI Project Zero (PZ), and Gigabyte Stealth are all explicitly compatible. The case has two PSU mounting positions specifically to accommodate back-connect boards, which require the PSU to sit further from the motherboard than standard boards to clear the connector pass-through positions.Corsair FRAME 5000D RS Review
In terms of compatibility, this case supports a broad range of motherboards — from mini-ITX to full-sized ATX — including back-connector motherboards for the tidiest of builds. Additionally, it offers seven expansion slots and graphics cards can be up to 400mm long.
Storage is where the Light Base 500 LX is more limited than larger cases. Two 2.5-inch SSD mounts behind the motherboard tray and one 3.5-inch HDD cage adjacent to the PSU compartment. One of the HDD positions is occupied by the fan hub controller in the LX version — reducing effective drive capacity by one position. For a gaming-focused build with NVMe drives only, this doesn’t matter. For a build requiring multiple mechanical drives, the Pure Base 803 (arriving Q1 2027) or a larger case is the right choice.
The Four Pre-Installed Fans
Comes with four pre-installed 120mm Light Wings LX PWM fans — three reverse-blade intake models for the side mount, one forward-blade rear exhaust — for optimal airflow and visual impact.+ be quiet! Light Base 500 LX Black ($ 139)
Light Wings LX fans are be quiet!’s ARGB-capable line. They run to 1600 RPM, produce high-quality diffused RGB lighting without visible LED hot spots, and operate quietly at gaming load speeds (800-1200 RPM typical). The ARGB and PWM hub included with the LX model controls up to six fan and lighting devices from a single motherboard header connection, which simplifies the cable management considerably.
The fan quality is notably above what case-bundled fans typically deliver at this price. Most cases bundle generic fans and expect you to replace them. The Light Wings LX fans are the same units be quiet! sells standalone at $20-$25 each — four of them included with the case has real value. How to Set Up PC Fan Airflow
The Acoustic Performance
This is be quiet!’s domain, and the Light Base 500 LX delivers. At gaming load fan speeds — typically 800-1000 RPM on the side intake fans and 900 RPM on the rear exhaust — the case is effectively inaudible at normal desk distances. The Light Wings LX fans produce smooth, tonally neutral airflow noise without the whine or ticking that cheaper fan bearings develop.
The glass panels do some acoustic work too. Unlike a mesh-front case that passes sound through the front panel relatively unimpeded, the glass front and glass side reflect some mid-frequency noise back into the case interior rather than projecting it outward. The net effect is a case that sounds quieter than its thermal performance would suggest — a benefit that be quiet!’s product philosophy delivers consistently.
The Two Limitations Worth Knowing
No 420mm radiator support. The top of the case supports 360mm at maximum — two 140mm fan positions or three 120mm positions. For builders running a custom loop with 420mm radiators or the very high-TDP chip combinations (9950X3D2, Core Ultra 9 290K overclocked), this is a genuine constraint. The Corsair FRAME 5000D RS and the Lian Li O11 Dynamic EVO both support 420mm at multiple positions if this is the requirement.
The top panel fan support is limited. Only two 140mm fans can be installed at the top position. The angular side-intake design determines the case layout and doesn’t leave room for the three-fan top configurations that larger cases support. For most builds this is irrelevant — front intake plus top exhaust is standard practice and works fine here. For extreme multi-radiator custom loop configurations, a larger case is more appropriate.
Who Should Buy It
You want panoramic glass aesthetics without the thermal penalty that most glass-front cases impose. The Light Base 500 LX’s side-intake fan design achieves temperatures that compete with front-intake mesh cases in GPU-focused workloads while maintaining the full-glass visual presentation. Best PC Case Fans 2026
You’re using a back-connect motherboard. The explicit BTF, Project Zero, and Stealth compatibility with dual PSU positions makes this one of the better cases for building cleanly with a back-connect board.
You value acoustic performance. be quiet!’s engineering philosophy produces a case that sounds as good as it looks.
You’re not running a custom loop with 420mm radiators or extreme dual-radiator configurations — for those builds, look at the FRAME 5000D RS ($159)or Lian Li O11 Dynamic EVO ($159)
Specs
| Spec | Detail |
|---|---|
| Form factor | ATX mid-tower |
| Motherboard support | Mini-ITX, Micro-ATX, ATX (back-connect compatible) |
| GPU clearance | 400mm |
| CPU cooler height | 185mm |
| Pre-installed fans | 3× Light Wings LX 120mm reverse (side), 1× Light Wings LX 120mm (rear) |
| Fan support | Up to 10× 120mm across all positions |
| Radiator support | 360mm top, 240mm side, 120mm rear |
| Back-connect support | ASUS BTF, MSI Project Zero, Gigabyte Stealth |
| Front I/O | 1× USB 3.2 Gen 2 Type-C, 2× USB 3.2 Type-A, audio, ARGB button |
| Storage | 2× 2.5-inch SSD, 1× 3.5-inch HDD |
| Warranty | 3 years |
| Price | $139.90 on Newegg |
